Case study · Bath

21kW in-roof solar
on a full re-roof.

44 LONGi mono black panels set into a brand-new roof rather than bolted on top of it, with a 12kW three-phase hybrid inverter and 17.4kWh of battery storage. Designed and installed by our own team in Bath.

Talk to us about your roof 01225 431219

Want a number first? See my price in 2 minutes

NICEIC registered
Installations to MCS standards
5-star Google rated
0% VAT on qualifying installs
The system

What we
installed.

System size
21.12kWp
Panels
44 × LONGi 480W
Mono black, 17 and 27 across two roof slopes
Mounting
GSE in-roof
Full re-roof, panels flush with the roofline
Inverter
SolaX X3 Hybrid G4 PRO 12kW
Three-phase hybrid
Battery
17.4kWh
Three SolaX Triple Power modules
Location
Bath
Before and after

From bare roof
to finished array.

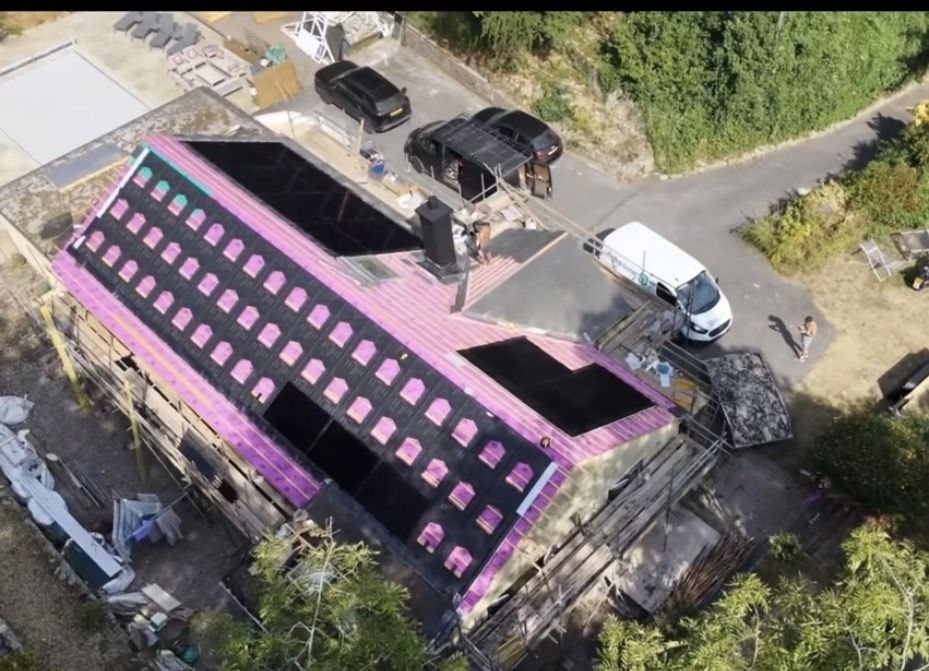

Drone view of a Bath bungalow mid re-roof, with GSE in-roof solar panels going in on both slopes
DuringThe old roof stripped back, with the in-roof system going in on both slopes before the new tiles went on.
Finished 21kW in-roof solar installation on a re-roofed bungalow in Bath, with LONGi mono black panels flush with the new tiles
AfterNew roof finished, with the arrays sitting flush in the roofline rather than on rails above it.
SolaX X3 Hybrid G4 PRO inverter with three SolaX Triple Power battery modules, isolators and cable tray in the plant room
The plant room

Inverter, battery and isolation in one place.

The SolaX X3 Hybrid G4 PRO inverter sits above three SolaX Triple Power battery modules, which make up the 17.4kWh of storage. Cabling runs in tray and containment, with the isolator and supply panel alongside.

It is the part of the job most people never see, so we photograph it.

The design

Why it was
built this way.

One project, managed by Cube. Cube managed the whole job: the full reroof, the in-roof solar, the battery and the electrics, with one point of contact for the homeowner throughout. About Roof + Solar →

In-roof, because the roof was coming off anyway. On a full reroof, in-roof can be a natural choice. The GSE trays replace the tiles they cover, so you aren't paying for roof covering under the panels, and the finished array sits flush with the new roofline instead of on rails above it.

Both slopes used. The 44 panels are split 17 and 27 across two slopes, which spreads generation across more of the day than a single-slope array.

Three-phase hybrid inverter. The property has a three-phase supply, so the system runs on SolaX's 12kW three-phase hybrid, which manages the panels and the battery from one unit.

17.4kWh of storage. A battery this size holds a large share of the daytime generation for use in the evening, and can also charge on a cheap overnight tariff.

Jobs like this, where the roof, the solar and the electrics all have to be planned together, are the ones we're built for. Thinking about a re-roof? How in-roof solar works →

More of our Bath solar installations, or read about solar panel installation in Bath with Cube Solar.
